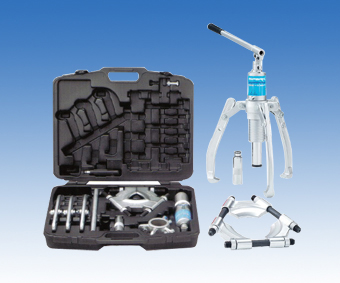

HYDRAULIC PULLERS PACKAGE MODELS
 | ● The platen center triangle convex close to the inner ring of drawing workpiece, labor saving and high speed. ● Cobra series wheel extractor for the triangular claw design, life-long warranty, can be matched with the triangular pressure plate opening, zoom, action synchronization, time saving and labor saving,safe and fast. ● A bearing can be prevented and the axis or workpiece and other related equipment damage. ● The package is complete, the PE storage box is convenient to carry and use. ● Applicable bearing, shaft sleeve, gear and other demolition work. |
Model No. | Capacity （ton） | Set combination |
Reach （mm） |
Spread (mm) |
Stroke （mm） |
Jaw Tip （mm） |
Pump Tip （mm） | Weight （kg) | |||||
A | B | C | D | E | F | G | |||||||
K3-6in | 6 | SPK-6in+K3-100 | 165 | 30-200/260 | 82-130 | 11 | 6 | 22 | 30 | 85 | 42 | 25 | 12.4 |
K3-8in | 8 | SPK-8in+K3-160 | 210 | 30-250/355 | 82-160 | 11 | 10 | 25 | 50 | 85 | 50 | 28 | 16.8 |
K3-15in | 15 | SPK-15in+K3-160 | 240 | 50-280/380 | 82-180 | 14 | 10 | 29 | 50 | 85 | 60 | 35 | 19.7 |
K3-10inC | 10 | SPK-10inC+K3-100 | 195 | 30-250/310 | 82-130 | 11 | 6 | 22 | –– | 85 | 42 | 25 | 13.8 |
K3-12inC | 12 | SPK-12inC+K3-160 | 240 | 30-300/370 | 82-160 | 11 | 10 | 25 | –– | 85 | 50 | 28 | 20.1 |
K3-20inC | 20 | SPK-20inC+K3-160 | 275 | 50-360/430 | 82-180 | 14 | 10 | 29 | –– | 85 | 60 | 35 | 23.0 |
