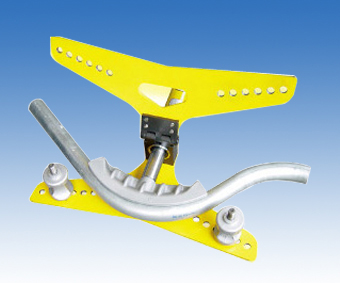

Hydraulic bending tool for hydropower project ● The application of the general water pipe, wire pipe, gas pipe, steel pipe,bending angle of 90. ● You 1/2 "~2" shape 90°,21/2, "~3" must move the pipe bending 3~5,in order to achieve bending curvature. ● The use of aluminum alloy bending die, portable. ● 3" above are to extend the bending mold ductile iron well made strong is not easy to break. ● The operation to control the mold diameter please according to specification, do not take a long tubular. 4 "when bending 5 times to 10 times, two times can not be bent into a pipe will cause depression or mold crack. Note: do not bend seamless steel tube! |
|
Model No. | Capacity （ton） | Use Range | Stroke （mm) | Oil Capacity （cc） | Weight （kg） | ||
Thin Steel Pipe （A） | Thick Steel Pipe （B） | GasPipe （SGB） | |||||
SPK-3PB | 15.0 | 15mm-75mm （5/8")-(3") | 16mm-82mm (1/2")-(3") | 15mm-65mm (1/2")-(21/2") | 270 | 720 | 18.6 |
SPK-4PB | 25.0 | 15mm-75mm （5/8")-(3") | 16mm-104mm (1/2")-(4") | 15mm-100mm (1/2")-(4") | 270 | 760 | 28.8 |
弯管模号 （管号） | 适用管规格 | 弯曲半径 | |||
管外径 | 管内径 | 管厚 | |||
厚 钢 管 B | B16（1/2＂） | 21.0 | 16.4 | 2.3 | 75 |
B22（3/4＂） | 26.5 | 21.9 | 2.3 | 90 | |
B28（1＂） | 33.3 | 28.3 | 2.5 | 130 | |
B36（11/4＂） | 41.9 | 36.9 | 2.5 | 195 | |
B42（11/2＂） | 47.8 | 42.8 | 2.5 | 230 | |
B54（2＂） | 59.6 | 54.0 | 2.8 | 270 | |
B70（21/2＂） | 75.2 | 69.6 | 2.8 | 450 | |
B80（3＂） | 87.9 | 82.3 | 2.8 | 500 | |
B92（31/2＂） | 100.7 | 93.7 | 3.5 | 500 | |
B104（4＂） | 113.4 | 106.4 | 3.5 | 680 | |
瓦 斯 管 S G P | SGP15（1/2＂） | 21.7 | 16.1 | 2.8 | 60 |
SGP20（3/4＂） | 27.2 | 21.6 | 2.8 | 80 | |
SGP25（1＂） | 34.0 | 27.6 | 3.2 | 100 | |
SGP32（11/4＂） | 42.7 | 35.7 | 3.5 | 130 | |
SGP40（11/2＂） | 48.6 | 41.6 | 3.8 | 160 | |
SGP50（2＂） | 60.5 | 52.9 | 4.2 | 220 | |
SGP65（21/2＂） | 76.3 | 67.9 | 4.2 | 320 | |
SGP80（3＂） | 89.1 | 80.7 | 4.2 | 425 | |
SGP90（31/2＂） | 101.6 | 93.2 | 4.2 | 550 | |
SGP100（4＂） | 114.3 | 105.3 | 4.2 | 600 | |
